K3 Straight-through Hydraulic Quick Coupling ( steel+brass )
Hydraulic Quick Coupling
● The smooth, open bore with no valving in either halfoffersminimal pressure drop and allows easy cleaning in applications where the same lines are used for more than one media.
● K3 couplers and nipples are machined from solid
bar stock providing the quality coupling that is durable.
● K3 couplers are available in brass and 304 stainless steel as standard product materials.
● K3nipples are available in brass and zinc- Plated steel. The ball locking grooves of the steel ZJ- KA nipples are case hardened for resistance to brinelling where high cycle rates and pressure surges are encountered.
● K3- KA is an “Interchange” coupling because the dimens ionally and functionally can interchange with similar couplings made by other manufactures.
● Compatible with 3/8 TEMA 3800 KEW Series.
The K3 Series are non-valved couplings for applications where maximum flow is required. Their smooth, open bore offers the lowest pressure drop of any quick coupling design and is ideal for applications such as high-pressure water and steam washers, carpet cleaners and mold coolant lines and many other non-valved applications.

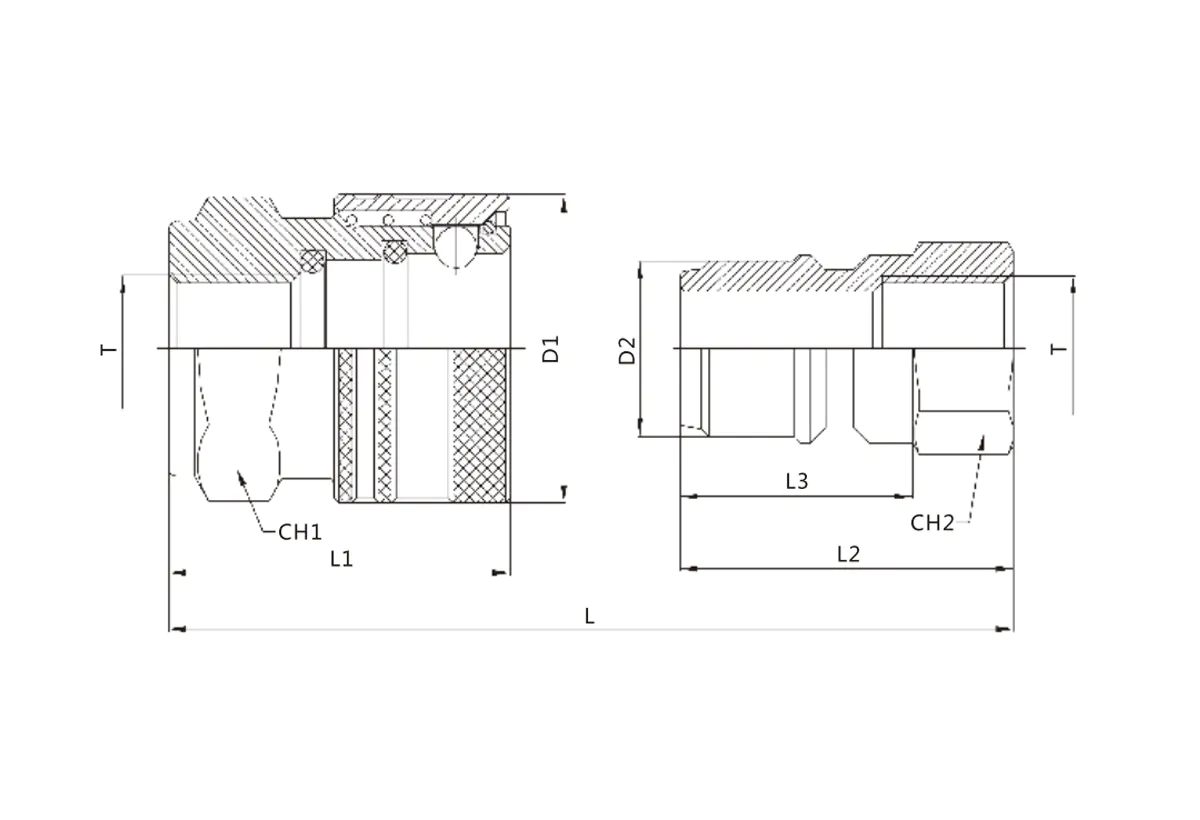

| PART No. | ISO | L | L1 | L2 | L3 | D1 | D2 | CH1 | CH2 | T | ||
| K3-03-SP | DN10 | 53 | 39 | 38 | 26.5 | 35 | 20 | 30 | 22 | ZG3/8 | G3/8 | NPT3/8 |
