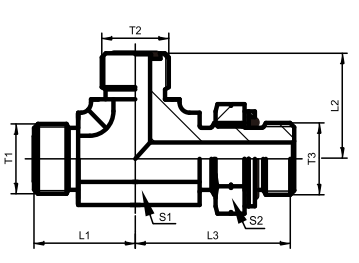

ORFS Male O-Ring / BSP Male O-Ring Run Tee
| PART NO. | THREAD | DIMENSIONS | WEIGHT | WORKING PRESSURE | ||||||
| T1 | T2 | T3 | L1 | L2 | L3 | S1 | S2 | g | ||
| AFFG-04-04-020G AFFG-040G AFFG-06-06-040G AFFG-060G AFFG-08-08-060G AFFG-080G AFFG-10-10-080G AFFG-10-10-120G AFFG-120G AFFG-12-12-160G AFFG-160G |
9/16″X18 9/16″X18 11/16″X16 11/16″X16 13/16″X16 13/16″X16 1″X14 1″X14 1.3/16″X12 1.3/16″X12 1.7/16″X12 |
9/16″X18 9/16″X18 11/16″X16 11/16″X16 13/16″X16 13/16″X16 1″X14 1″X14 1.3/16″X12 1.3/16″X12 1.7/16″X12 |
G1/8″X28 G1/4 “X19 G1/4″X19 G3/8″X19 G3/8″X19 G1/2″X14 G1/2″X14 G3/4″X14 G3/4″X14 G1″X11 G1″X11 |
21.5 23.5 25 26.5 28 31 33.5 36 37.5 41 41.5 |
21.5 23.5 25 26.5 28 31 33.5 36 37.5 41 41.5 |
30 36 36 38 38 48.5 48.5 51.5 51.5 58.5 58.5 |
14 19 19 19 19 27 27 30 30 33 36 |
14 19 19 22 22 27 27 36 36 41 41 |
65 90 118 145 160 232 312 399 493 664 795 |
31.5 31.5 31.5 25 25 25 25 16 16 16 16 |
