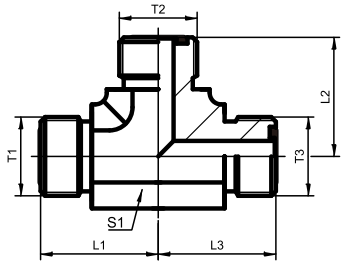

ORFS Male O-Ring Tee
| PART NO. | THREAD | DIMENSIONS | WEIGHT | WORKING PRESSURE | |||||
| T1 | T2 | T3 | L1 | L2 | L3 | S1 | g | ||
| AF-04 AF-06 AF-08 AF-10 AF-12 AF-16 AF-20 AF-24 |
9/16″X18 11/16″X16 13/16″X16 1″X14 1.3/16″X12 1.7/16″X12 1.11/16″X12 2″X12 |
9/16″X18 11/16″X16 13/16″X16 1″X14 1.3/16″X12 1.7/16″X12 1.11/16″X12 2″X12 |
9/16″X18 11/16″X16 13/16″X16 1″X14 1.3/16″X12 1.7/16″X12 1.11/16″X12 2″X12 |
21.5 25 28 33.5 37.5 41.5 44.5 49 |
21.5 25 28 33.5 37.5 41.5 44.5 49 |
21.5 25 28 33.5 37.5 41.5 44.5 49 |
14 19 19 27 30 36 41 48 |
68 106 148 262 401 612 816 1195 |
63 63 63 40 40 40 25 25 |
