22691-T

Acoplamiento cónico de 60° con rosca BSP

Obtener precios +86 18331807383

Descripción del producto

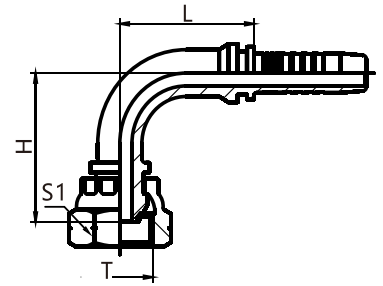

Rosca interna de tubo británico de 90° Superficie cónica exterior de 60°

Code PART NO.	Thread T	Hose Bore		Dimensions
	THREAD T	Nominal Inner Diameter DN	Dash Number	L	H	S1
22691-02-04 22691-04-04 22691-04-05 22691-04-06 22691-06-04T 22691-06-05T 22691-06-06 22691-06-08 22691-08-06T 22691-08-08 22691-10-08T 22691-10-10 22691-12-10T 22691-12-12 22691-16-12T 22691-16-16 22691-20-16T 22691-20-20 22691-24-20T 22691-24-24 22691-32-24T 22691-32-32	G1/8″X28 G1/4″X19 G1/4″X19 G1/4″ X19 G3/8″X19 G3/8″ X19 G3/8″X19 G3/8″X19 G1/2″X14 G1/2″ X14 G5/8″X14 G5/8″X14 G3/4″ X14 G3/4″ X14 G1″X11 G1″X11 G1.1/4″X11 G1.1/4″X11 G1.1/2″X11 G1.1/2″X11 G2″X11 G2″X11	6 6 8 10 6 8 10 13 10 13 13 16 16 19 19 25 25 32 32 38 38 51	4 4 5 6 4 5 6 8 6 8 8 10 10 12 12 16 16 20 20 24 24 32	32 32 32.5 36.5 32 32.5 36.5 44.5 36.5 44.5 44.5 55 55 62 62 74 74 91.5 91.5 108 108 133.8	27 28 31.5 34 31 34 34 42 35 41 45 51 56 58 62 70 76 85 92 100 110 140	14 19 19 19 22 22 22 22 27 27 30 30 32 32 41 41 50 50 55 55 70 70
