Descripción del producto

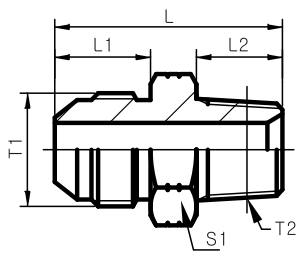

JIC Male 74° Cone / BSPT Male 60°Seat

PART NO.	THREAD		DIMENSIONS				WEIGHT	WORKING PRESSURE
	T1	T2	L1	L2	L	1	g
1JT-04-02SP 1JT-04SP 1JT-05-02SP 1JT-05-04SP 1JT-06-04SP 1JT-06SP 1JT-08-04SP 1JT-08-06SP 1JT-08SP 1JT-10-06SP 1JT-10-08SP 1JT-10-12SP 1JT-12-08SP 1JT-12SP 1JT-12-16SP 1JT-16-12SP 1JT-16SP 1JT-20-16SP 1JT-20SP 1JT-24SP	7/16″X20 7/16″X20 1/2″X20 1/2″X20 9/16″X18 9/16″X18 3/4″X16 3/4″X16 3/4″X16 7/8″X14 7/8″X14 7/8″X14 1.1/16″X12 1.1/16″X12 1.1/16″X12 1.5/16″ X12 1.5/16″X12 1.5/8″X12 1.5/8″X12 1.7/8″X12	R1/8″X28 R1/4″X19 R1/8″X28 R1/4″X19 R1/4″X19 R3/8″X19 R1/4″X19 R3/8″X19 R1/2″X14 R3/8″X19 R1/2″X14 R3/4″X14 R1/2″X14 R3/4″ X14 R1″X11 R3/4″X14 R1″X11 R1″X11 R1.1/4″X11 R1.1/2″X11	14 14 14 14 14.1 14.1 16.7 16.7 16.7 19.3 19.3 19.3 21.9 21.9 21.9 23.1 23.1 24.3 24.3 27.5	10 12 10 12 12 12 12 12 14 12 14 16 14 16 18 16 18 18 20 22	31 36 31 36 36.3 36.4 38.9 38.9 45.5 43.2 48 49.5 52.3 52.3 57.1 53.6 58.4 61.4 62.2 68.1	12 14 14 14 17 19 19 19 22 24 24 27 27 27 36 36 36 46 46 50	22 33 24 30 35 50 56 61 98 89 104 140 145 164 248 234 275 392 447 568	34.5 34.5 34.5 34.5 34.5 34.5 31 31 31 24 24 24 24 24 20.5 21 20.5 17 17 10.5
