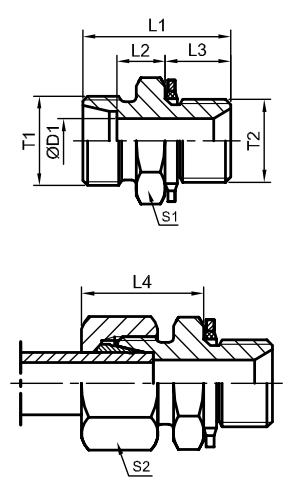

Sello de asiento de válvula macho métrico de 60° o sello adhesivo extremo de perno
| PART NO. | THREAD | TUBE O.D | DIMENSIONS | WEIGHT | WORKING PRESSURE | SERIES | ||||||
| T1 | T2 | D1 | L1 | L2 | L3 | L4 | 1 | S2 | g/pc | (bar) | ||
| 1CM-12-10 1CM-14-12 1CM-14-18 1CM-16-14 1CM-16 1CM-16-18 1CM-16-22 1CM-18-14 1CM-18-16 1CM-18 1CM-18-22 1CM-22-16 1CM-22-18 1CM-22 1CM-26-18 1CM-26-22 1CM-30-22 1CM-30-26 1CM-30-27 1CM-36-33 1CM-45-42 1CM-52-48 1DM-14-12 1DM-16-14 1DM-18-16 1DM-20-18 1DM-20-22 1DM-22-20 1DM-24-18 1DM-24-22 1DM-30-27 1DM-36-33 1DM-42 1DM-52-48 |
M12 1.5 M14 1.5 M14 1.5 M16x1.5 M16x1.5 M16x1.5 M16 1.5 M18 1.5 M18 1.5 M18 1.5 M18x1.5 M22 1.5 M22 1.5 M22 1.5 M26x1.5 M26 1.5 M30 2 M30 2 M30 2 M36x2 M45 2 M52 2 M14 1.5 M16 1.5 M18 1.5 M20 1.5 M20x1.5 M22 1.5 M24 1.5 M24 1.5 M30 2 M36 2 M42 2 M52 2 |
M10x1 M12 1.5 M18 1.5 M14 1.5 M16 1.5 |M18x1.5 M22 1.5 M14 1.5 M16 1.5 M18 1.5 M22 1.5 M16 1.5 M18 1.5 M22 1.5 |M18x1.5 M22 1.5 M22 1.5 M26x1.5 M27 2 M33 2 M42 2 M48 2 M12 1.5 M14 1.5 M16 1.5 M18 1.5 M22 1.5 M20x1.5 M18 1.5 M22 1.5 M27 2 M33 2 M42 2 M48 2 |
6 8 8 10 10 10 10 12 12 12 12 15 15 15 18 18 22 22 22 28 35 42 6 8 10 12 12 14 16 16 20 25 30 38 |
23.5 29 30.5 30 31.5 31.5 35 30 31.5 31.5 35 32 32.5 36 33.5 36 38 40 42 43 48 52 32 34 34.5 36.5 39 41 38.5 41 47 53 57 64 |
8.5 10 11.5 11 12.5 12.5 14 11 12.5 12.5 14 13 13.5 15 14 14.5 16.5 16.5 18.5 17.5 17.5 19 13 15 15 17 17.5 19 18 18.5 20.5 23 23.5 26 |
8 10 12 11 12 12 14 11 12 12 14 12 12 14 12 14 14 16 16 18 20 22 10 11 12 12 14 14 12 14 16 18 20 22 |
23 25 26 26 24 27 29 26 27 27 29 28 29 30 30 31 33 33 35 34 39 42 28 30 31 33 34 37 36 37 42 47 50 57 |
14 17 24 19 22 24 27 19 22 24 27 24 24 27 27 27 32 32 32 41 50 55 17 19 22 24 27 27 27 27 32 41 50 55 |
14 17 17 19 19 19 19 22 22 22 22 27 27 27 32 32 36 36 36 41 50 60 17 19 22 24 24 27 30 30 36 46 50 60 |
13 22 23 29 39 49 79 30 39 46 73 50 63 75 67 72 94 100 164 275 350 355 41 53 59 70 100 96 86 93 147 260 415 560 |
500 500 500 500 420 400 400 400 400 400 400 400 400 400 400 400 250 250 250 250 250 250 800 800 800 630 630 630 630 800 420 420 420 420 |
L L L L L L L L L L L L L L L L L L L L L L S S S S S S S S S S S S |
Nota: Si usted está interesado en pedir un conjunto completo de adaptadores con anillo de corte y tuerca, es necesario insertar el sufijo “RN” detrás de nosotros, por ejemplo 1CM-30-27/RN.
